Cat6 UTP 90° 110 Punch Down Keystone Jack

3D01-A01-00002



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



90-Degree keystone jack has its unique termination tool, 3D01-F01-00001, to easily terminate the keystone jack.



Features

  • Compatible with T568A and T568B wiring schemes.

  • Use 110 IDC, punch down type.

  • Complete automatic production line of PCB assembly to ensure production consistency and provide high quality products.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

Electrical Features

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 V AC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.

Physical Characteristics

  • Suitable Impact Tool: 110 Style Punch Down Tool.

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 200 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 Awg Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.



Cat6 UTP 90° 110 Krone Dual Keystone Jack

3D02-A01-00002





In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible with T568A and T568B wiring schemes.

  • Smart 110, krone dual IDC design.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Material:

  • Keystone Jack Housing: ABS, UL94V-0.

  • Contact Holder: ABS, UL94V-0.

  • Jack Contacts: Phosphor Bronze, 50U" Gold Plated.

  • IDC Plastic: PC, UL94V-0.

  • IDC Terminals: Phosphor Bronze, Tin Over Nickel Undercoat.



Physical Characteristics:

  • Suitable Impact Tool: 110 & Krone Style Punch Down Tool.

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 200 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.



Note:

  • Will Not Support Channel Shorter Than 15m.

  • Only Accept RJ-45 8P8C Plug.

Cat6 UTP 180° 110 & Krone Dual Keystone Jack

3D02-A01-00004



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



180-Degree keystone jack has its unique termination tool, 3D02-L01-00001, to easily terminate the keystone.



Features

  • Compatible with T568A and T568B wiring schemes.

  • 110, krone both available punch down type.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

Electrical Features

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.

Physical Characteristics

  • Suitable Impact Tool: 110 & Krone Style Punch Down Tool.

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 200 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6 UTP 90° 110 Punch Down Keystone Jack

3J01-A01-00004



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Cat6 UTP 90 Degree RJ45 110 IDC Punch Down Keystone Jack



Features:

  • Compatible with T568A and T568B wiring schemes.

  • 110 IDC punch down type.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.

Cat6 UTP Component Level Toolfree Keystone Jack

3J01-A01-00028



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Easy crimping tool can be used, 3J01-L01-00002, for this type of keystone jack.



Features:

  • Compatible with T568A and T568B wiring schemes.

  • Toolless type.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.







Cat6 UTP 180 degree 110 Keystone Jack

3D01-A01-00004



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible with T568A and T568B wiring schemes.

  • 110 IDC punch down type.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Suitable Impact Tool: 110 Style Punch Down Tool.

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 200 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

CAT6 STP 90 degree punch down, 110 TYPE

3J01-A01-00005



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible with T568A and T568B wiring schemes.

  • 110 IDC punch down type.

  • Compatible with 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Suitable Impact Tool: 110 Style Punch Down Tool.

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 200 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6 STP 180° Toolfree RJ45 Keystone Jack

3J01-A01-00009



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Cat6 STP 180 Degree Toolless RJ45 Keystone Jack With Two Caps



Easy crimping tool can be used, 3J01-L01-00001, for this type of keystone jack.



Features:

  • Compatible with T568A and T568B wiring schemes.

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high-quality products.

  • Compatible with 24-port applications in 1U.

  • With two caps design, you can use punch down or tool-free dual options.

  • Easy Installation.

  • We Provide The Smart Power-Saving Tool.

  • Compliance with Delta Certificate

Cat6 UTP 180° Toolless Keystone Jack

3J01-A01-00008



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With Cat.6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • with two caps design, punch down & toolless dual function

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high-quality products.

  • Compatible for 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • Easy Installation.

  • We design smart tool for easy crimping.

Cat6 FTP Component Level Keystone Jack

3J01-A01-00029



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With Cat.6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Cat.6 RJ45 component level, Full Shielded, 90degree,tool-free & 110 punch down dual function.



Easy crimping tool can be used, 3J01-L01-00002, for this type of keystone jack.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • with two caps design, punch down & toolless dual function

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high- quality product.

  • Compatible for 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • Easy Installation.

  • We design smart tool for easy crimping.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Material:

  • 1. RJ45 Jack

  • 1-1. Housing: Zinc Die-Casting with Nickel plated.

  • 1-2. Contact Bracket : PBT + Glass Fiber, UL 94V-0.

  • 2. RJ45 Jack Contact

  • 2-1. Material: Phosphor Bronze with Nickel plated.

  • 2-2. Finish: 60 micro-inch Gold plated on Plug contact area.

  • 3. Cap: Zinc Die-Casting with Nickel plated.

  • 4. ICD Cap: PC + Glass Fiber, White color, UL 91V-2.

  • 5. Clip: Stainless Steel.

  • 6. ICD :

  • 6-1. Housing: PC + Glass Fiber, Grey color (RAL7035), UL 91-V2.

  • 6-2. Terminal: Phosphor Bronze with Tin-Plated

  • 7. Grounding Contact: Zinc Die-Casting with Nickel plated.

  • 8. PCB: FR4, UL94V-0.

Cat.6 UTP 90 degree 110 Keystone Jack

3J01-A01-00036



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.

​

CAT.6 UTP RJ45 90 degree punch down, unshielded,110 TYPE, WHITE COLOR for network cabling

​

Features:

  • Compatible both T568A and T568B wiring schemes.

  • with two caps design, punch down & toolless dual function

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high-quality products.

  • Compatible for 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • Easy Installation.

  • We design smart tool for easy crimping.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.

CAT.6 UTP 180 degree toolfree Keystone Jack

3J01-A01-00016



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • With IDC cap for toolless wire management.

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high-quality products.

  • Compatible for 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • Easy Installation.

Cat. 6 FTP slim type toolless Keystone Jack

3D02-A01-00010



In order to reach a higher performance level, we have kept trying to meet Category 6 transmission criteria. With C6 total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features

  • Compatible both T568A and T568B wiring schemes.

  • With IDC cap for toolless wire management.

  • Complete automatic production line of PCB assembly to ensure product consistency and provide high-quality products.

  • Compatible for 24-port applications in 1U.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • Easy Installation.

Cat6A STP Toolless Component Level Keystone Jack

3J01-A01-00031



This brand new screened keystone jack features a mechanical design for optimizing the NEXT in both measurement directions which are the most critical criteria outlined by Class EA standard.
The Tool-less design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of STP installation.

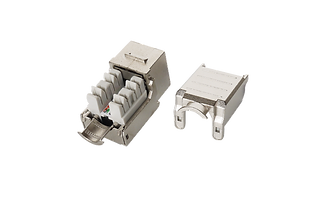

Cat 6A Shielded Component Level Keystone Jack For STP RJ45 Network Data Connections



Easy crimping tool can be used, 3J01-L01-00003, for this type of keystone jack.



Features:

  • Full-Shielded with a rugged cast-encased rear, utilizing an innovative tool-free termination

  • Easy, reliable and stable quality by insert-molding and press-fit assembly process

  • Fits for 1U 24port and 1U 48 port keystone panel

  • Suitable for cabling from the smallest home networks to very large data centers



Specification:

  • IEC 60603-7 Category 6A ISO 11801 2nd Edition Class EA

  • IEEE 802.3af PoE and IEEE 802.3at PoE+ applications



Physical Characteristics:

  • Housing and cover material: Zinc die-casting with nickel plated

  • Insertion force: 30N max. (IEC 60603-7)

  • Retention strength: 7.7kg between jack and plug

  • Operating temperature : -10°~60° (ISO/IEC 11801, ANSI/TIA-568C.2)

  • Mating cycles: 750 cycles minimum

  • IDC mating cycles: 20 installation cycles minimum



Note:

  • Cable entrance diameter range: 5.5mm~9.0mm

  • Insulation diameter range : 0.95mm~1.62mm

  • Solid and Stranded conductor: 22AWG~24AWG for Cat.8 Type, 23AWG~26AWG for Cat.6A Type

  • Wire scheme : T568A / T568B

Cat8 RJ45 FTP Toolless Keystone Jack

3J01-A01-00040



The Cat. 8 transmission performance is in compliance with the ANSI/TIA 568-C.2-1 standard. EXW cat.8 solution is channel performance verified, meet PoE plus (IEEE802.3at) application. Our Cat. 8 keystone jack can fit with both 1U 24port & 48port keystone panel and suitable for the smallest home networks to very large data centers. So far the Cat. 8 solutions will be based on shielded cables and connectors because of alien crosstalk difficulties.



Features:

  • Full-Shielded with a rugged cast-encased rear, utilizing an innovative tool-free termination

  • Easy, reliable and stable quality by inset mold and press-fit assembly process

  • Fits for 1U 24port and 1U 48 port keystone panel

​

Specification:

  • ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8

  • IEEE 802.3af PoE and IEEE 802.3at PoE+ applications



Physical Characteristics:

  • Housing and cover material: Zinc die-casting with nickel plated

  • Insertion force: 30N max. (IEC 60603-7)

  • Retention strength: 7.7kg between jack and plug

  • Operating temperature : -10°C~60°C(ISO/IEC 11801, ANSI/TIA-568C.2)

  • Mating cycles: 750 cycles minimum

  • IDC mating cycles: 20 installation cycles minimum



Note:

  • Cable entrance diameter range: 5.5mm~9.0mm

  • Insulation diameter range : 0.95mm~1.62mm

  • Solid and Stranded conductor: 22AWG~24AWG for Cat.8 Type

  • Wire scheme : T568A / T568B

Cat. 6A FTP 180 degree ToolLess slim type Keystone Jack

3D02-A01-00012



The brand new screened keystone jack features a mechanical design for optimizing the NEXT in both measurement directions which are the most critical criteria outlined by Class EA standard.
The Tool-less design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of FTP installation.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • Tool-Free type, easy installation.

  • Compatible with 24 port applications in 1U, also fit high-density 48port panel.

  • Easily snap in and out of patch panel, and surface boxes or other application.

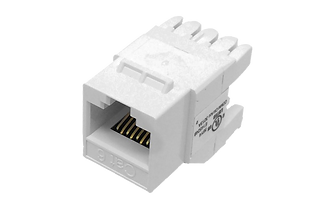

Cat6A UTP 90° 110 Punch Down Keystone Jack

3D01-A01-00005

​

In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With C6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • 110 punch down type.

  • Compatible with 24-port applications in 1U. Also fits high-density 48port panel.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.

  • Press-fit technology for green products.







Cat6A STP 180° Toolfree Keystone Jack

3J01-A01-00001



The brand new screened keystone jack features a mechanical design for optimizing the NEXT in both measurement directions which are the most critical criteria outlined by Class EA standard.
The Tool-less design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of STP installation.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • Tool-Free type, easy installation.

  • Compatible with 24 port applications in 1U, also fits high-density 48port panel.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.

  • With two caps design, customers can decide to use punch-down or tool-free two options. Provide more flexible for the stock and assembly solution!

  • Compliance with Delta Certificate.

Cat6A STP 180° Toolfree Keystone Jack

3D01-A01-00017



The brand new screened keystone jack features a mechanical design for optimizing the NEXT in both measurement directions which are the most critical criteria outlined by Class EA standard.


The Tool-less design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of STP installation.



Features

  • Compatible both T568A and T568B wiring schemes.

  • Tool-free type, easy installation.

  • Compatible with 24 port applications in 1U, also fit high-density 48port panel.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.

  • Press-fit technology for green products.

Cat6A UTP 180° Toolfree Keystone Jack

3D01-A01-00011



The brand new screened keystone jack features a mechanical design for optimizing the NEXT in both measurement directions which are the most critical criteria outlined by Class EA standard.


The Tool-less design requires no punch down tool. Now the termination of shielded modular jack takes you 90 seconds only. It surely increases the efficiency of UTP installation.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • Tool-free type, easy installation.

  • Compact design allows 6-port faceplate and 48port high-density blank panel usage.

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.

  • The shutter is optional.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 30 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6A UTP Component Level keystone jack

3J01-A01-00022



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • C6A component performance by ETL & DELTA verified

  • UL safety listed

  • Tool-free type, easy installation.

  • Copper wire gauge: 23AWG to 26AWG

  • Cable outer diameter: 5.0 to 8.0mm

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.

  • PoE plus IEC60512-99-001 vertified by DELTA

Cat6A UTP 90 degree toolless keystone jack

3J01-A01-00023



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.

​

Cat. 6A UTP 90-degree toolless keystone jack, tool-free & 110 punch down dual function, BK COLOR

​

Easy crimping tool can be used, 3J01-L01-00002, for this type of keystone jack.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • UL safety listed

  • Tool-free & 110 punch down, easy installation.

  • Copper wire gauge: 23AWG to 26AWG

  • Cable outer diameter: 5.0 to 8.0mm

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.

Physical Characteristics

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 30 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6A UTP 90 degree punch down keystone jack

3J01-A01-00026



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.

​

Features:

  • Compatible both T568A and T568B wiring schemes.

  • 110 punch down, easy installation.

  • Copper wire gauge: 23AWG to 26AWG stranded and solid wire

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Physical Characteristics:

  • Insertion Force: 20N max. (IEC 60603-7-4.)

  • Retention Strength: 7.7Kg between jack and plug.

  • Life: 750 Mating Cycles min. (ISO/IEC 11801, IEC 60613-7-4.)

  • Operating Temperature Range: -10°C To 60°C.

Cat6A FTP Component Level 110 keystone jack

3J01-A01-00027



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.

​



Features:

  • Compatible both T568A and T568B wiring schemes.

  • UL safety listed

  • 110 punch down type, easy installation.

  • Copper wire gauge: 23AWG to 26AWG

  • Cable outer diameter: 5.0 to 8.0mm

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 30 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6A FTP Component Level Toolless keystone jack

3J01-A01-00030



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.





Features:

  • Compatible both T568A and T568B wiring schemes.

  • UL safety listed

  • Tool-free type, easy installation.

  • Copper wire gauge: 23AWG to 26AWG

  • Cable outer diameter: 5.0 to 8.0mm

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 30 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6A UTP 90 degree 110 Keystone Jack

3J01-A01-00037



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • UL safety listed

  • Tool-free type, easy installation.

  • Copper wire gauge: 23AWG to 26AWG

  • Cable outer diameter: 5.0 to 8.0mm

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Electrical Features:

  • Insulation Resistance: 500 MΩ.

  • Dielectric Withstanding Voltage: 1000 VAC.

  • DC Current Rating: 1.5 Amps.

  • DC Resistance: 0.1Ω.

  • Contact Resistance: 20mΩ.



Physical Characteristics:

  • Insertion Life: 750 Mating Cycles With FCC Compliant 8p Plug.

  • Contact Force: 100 Grams With FCC Compliant 8p Plug.

  • Plug Retention Force: 11 LBF MIN.

  • Durability: 30 Termination Cycles.

  • Contact Compatibility: Accommodates 22 To 24 AWG Solid.

  • Operating Temperature Range: -10°C To 60°C.

  • Storage Temperature Range: -40°C To 68°C.

  • Humidity: 10% ~ 90%RH.

Cat6A UTP 90 degree punch down keystone jack

3J01-A01-00038



In order to reach a higher performance level, we have kept trying to meet Category 6A transmission criteria. With Cat.6A total solution products applying with patch panels, keystone jacks, outlets, patch cords and verified cables, the performance could fulfill your high-speed transmission requirements from telecommunication room to work area.



Features:

  • Compatible both T568A and T568B wiring schemes.

  • 110 punch down, easy installation.

  • Copper wire gauge: 23AWG to 26AWG stranded and solid wire

  • Easily snap in and out of patch panel, and surface boxes or other application.

  • UL Certified & RoHS Compliant.

  • 50U" gold plating.



Physical Characteristics:

  • Insertion Force: 20N max. (IEC 60603-7-4.)

  • Retention Strength: 7.7Kg between jack and plug.

  • Life: 750 Mating Cycles min. (ISO/IEC 11801, IEC 60613-7-4.)

  • Operating Temperature Range: -10°C To 60°C.

Dust Cap for RJ45 Keystone Jack

3SRC01BK

​

The Snap-In type dust cap prevents RJ-45 Keystone Jack from dust, dirt, and other contaminants. Keep your Jack neat and clean for the future use.



Specification:

  • Protect your Cat5e / Cat6 / Cat6a Keystone Jack from Dust, and Dirt

  • Keeps jacks free of physical interference

  • Prevents frequent disconnects associated with dust

  • Fits 8P8C Female Jack

  • Store your Jack safely, Shield from dust, Extend Life of unused Jack

  • keeps your Jack in a clean condition for future use

RJ45 Jack Snap-In Dust Cover

3SRC02WH





The Snap-In type dust cap prevents RJ-45 Keystone Jack from dust, dirt, and other contaminants. Keep your Jack neat and clean for the future use.



Specification:

  • Protect your Cat5e / Cat6 / Cat6a Keystone Jack from Dust, and Dirt

  • Keeps jacks free of physical interference

  • Prevents frequent disconnects associated with dust

  • Fits 8P8C Female Jack

  • Store your Jack safely, Shield from dust, Extend Life of unused Jack

  • keeps your Jack in a clean condition for future use

Please reload

bottom of page
